當前位置： 首頁 > 產品總匯 > 防爆管件類 > BDM□ 系列防爆電纜夾緊密封接頭（dⅡ）

BDM□ 系列防爆電纜夾緊密封接頭（dⅡ）

詳細信息

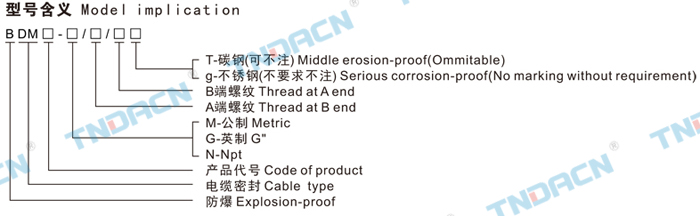

型號含義 Modelimplication

適用范圍 Applications

1. 1區、2區危險場所或20區、21區、22區危險場所；
2. ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3. 戶內、戶外(IP65、IP66*)；
4. 溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1. Hazardous:division 1 &2,or 20,21,&22;
2. Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammabledust environment;
3. Indoor or outdoor(IP65,IP66*);
4. Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil, Chemical industry, spaceflight,war ind-ustry and so on.

主要技術參數 Main technical parameters

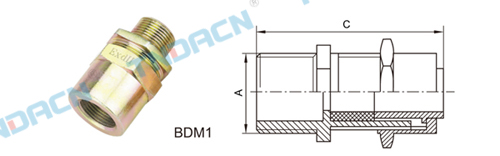

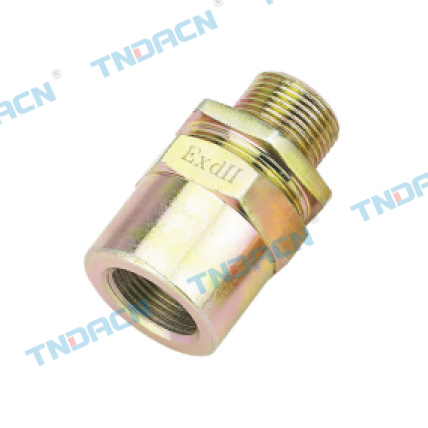

BDM1型：采用優質碳素鋼或不銹鋼制作，采用機械式電纜夾緊裝置。
Type BDM1: Carbon steel with good quality or stainless steel, machnical cable clamping set.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 防爆標志
Ex-mark		 防護等級
Degree of
protection
BDM1-15
BDM1-20
BDM1-25
BDM1-32
BDM1-40
BDM1-50
BDM1-70
BDM1-80		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
G2 1/2"
G3"		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37
φ30~φ42
φ30~φ56		 51
70
70
72
75
78
85
90		 ExdⅡ等效于
Ⅱ2G ExdⅡ
(歐標)		 IP65

BDM1型：采用優質碳素鋼或不銹鋼制作，采用機械式電纜夾緊裝置。
Type BDM1: Carbon steel with good quality or stainless steel, machnical cable clamping set.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 防爆標志
Ex-mark		 防護等級
Degree of
protection
BDM2-15
BDM2-20
BDM2-25
BDM2-32
BDM2-40
BDM2-50		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37		 50
50
58
64
64
69		 ExdⅡ等效于
Ⅱ2G ExdⅡ
(歐標)		 IP65

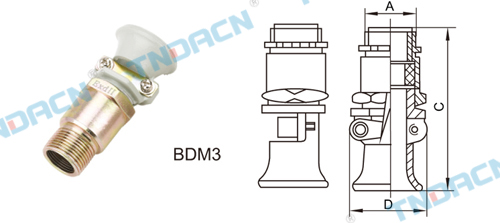

BDM3型：采用優質碳素鋼或不銹鋼制作，采用機械式電纜夾緊裝置，并帶有防拔脫裝置。
Type BDM3: Carbon steel with good quality or stainless steel machnical cable clamping set and with anti-drop device.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 D
(mm)		 防爆標志
Ex-mark
BDM3-15
BDM3-20
BDM3-25
BDM3-32
BDM3-40
BDM3-50
BDM3-70
BDM3-80
BDM3-100		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
G2 1/2"
G3"
G4"		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37
φ30~φ42
φ30~φ56
φ42~φ80		 72
77
86
96
98
110
162
183
183		 72
77
97
126
140
142
144
175
198		 ExdⅡ等效于
Ⅱ2G ExdⅡ
(歐標)

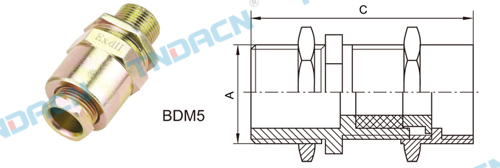

BDM5型：采用優質碳素鋼或不銹鋼制作，采用機械式電纜夾緊裝置。
Type BDM5: Carbon steel with good quality or stainless steel, machnical cable clamping set.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 防爆標志
Ex-mark		 防護等級
Degree of
protection
BDM5-15
BDM5-20
BDM5-25
BDM5-32
BDM5-40
BDM5-50
BDM5-70
BDM5-80		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
G2 1/2"
G3"		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37
φ30~φ42
φ30~φ56		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37
φ30~φ42
φ30~φ56		 Exd II
等效于
II 2G Exd II
(歐標)		 IP65

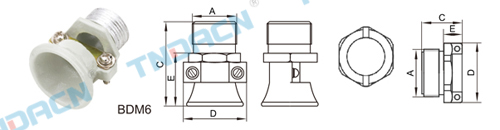

BDM6型：采用鋁合金制作，采用機械式電纜夾緊裝置，并帶有防拔脫裝置。
Type BDM1: Made of aluminium alloy, mechanical clamping set and with anti-drop device.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 D
(mm)		 E
(mm)
BDM6-15
BDM6-20
BDM6-25
BDM6-32
BDM6-40
BDM6-50
BDM6-70
BDM6-80
BDM6-100		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
G2 1/2"
G3"
G4"		 φ7~φ10
φ9~φ14
φ12~φ18
φ15~φ23
φ18~φ30
φ25~φ37
φ30~φ42
φ30~φ56
φ42~φ80		 38
38
52
76
86
88
88
112
128		 38
38
50
62
68
85
100
118
145		 32
32
32
50
58
58
62
78
95

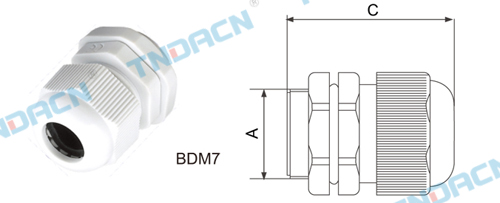

BDM7型：采用工程塑料壓制而成，具有較強的防腐和防水性能，適用于增安型外殼中作引入裝置用。
Type BDM7: It's made of engineering plastic and with serious corrosion&waterproof functions, it's used as entry set for
increased safety safety enclosure.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 防爆標志
Ex-mark		 防護等級
Degree of
protection
BDM7-15
BDM7-20
BDM7-25
BDM7-32
BDM7-40
BDM7-50
BDM7-M16
BDM7-M20
BDM7-M25
BDM7-M32
BDM7-M40
BDM7-M50
BDM7-M63		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
M16×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M63×1.5		 φ5~φ8
φ5~φ10
φ6~φ12
φ10~φ14
φ13~φ18
φ18~φ25
φ5~φ8
φ6~φ12
φ9~φ13
φ10~φ18
φ17~φ25
φ23~φ32
φ32~φ44		 8
8
9
10
11
11
7
7
11
11
13
13
15		 ExdⅡ等效于
Ⅱ2G ExdⅡ
(歐標)		 IP66

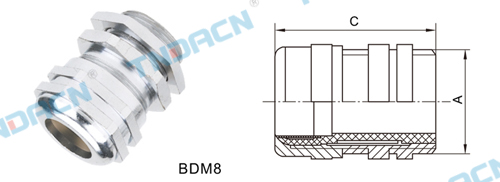

BDM8X型：采用優質黃銅鍍鎳或不銹鋼制作，采用機械式電纜夾緊裝置。
Type BDM8: use excellent brass casted with Nickel or made with stainless steel,Nickel-galvanizing,adopts mechanical
cable clamping set.

型號
Type		 A端管螺紋
Pipe thread at
A end(G")		 電纜外徑
Cable outer
dia.(mm)		 C
(mm)		 防爆標志
Ex-mark		 防護等級
Degree of
protection
BDM8-15
BDM8-20
BDM8-25
BDM8-32
BDM8-40
BDM8-50
BDM8-M16
BDM8-M20
BDM8-M25
BDM8-M32
BDM8-M40
BDM8-M50
BDM8-M63		 G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
M16×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M63×1.5		 φ7~φ9
φ8~φ14
φ12~φ17
φ13~φ23
φ17~φ26
φ25~φ35
φ2~φ6
φ5~φ9
φ9~φ16
φ13~φ20
φ20~φ26
φ25~φ31
φ29~φ35		 55
55
67
72
77
89
30
32
37
41
50
52
53		 ExdⅡ等效于
Ⅱ2G ExdⅡ
(歐標)		 IP66

公制螺紋C
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 鋼帶厚度上限01(mm)
Max thickness of steel braid		 鋼絲直徑φ
02(mm)
Steel wire
diameter		 網帶厚度上限
03(mm)
Max.thinkness of
wire braid		 直徑上限E
(mm)
Max.diameter
E
A(mm) B(mm) Min Max
M16×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M63×1.5
M75×1.5
M100×1.5		 12
12
16
16
16
17
17
19
19		 8.6
11.6
19.9
26.2
32.1
38.1
50
61.9
86		 6.0~13.4
9.5~15.9
19~25
22.9~33.9
26~39
35~46.7
45.6~59.4
57~72.1
76~93		 0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.3
0.3		 0.4
0.4
0.7
0.7
0.8
0.63
0.63
0.81
0.94		 0.9
0.9/1.25
1.25/1.60
1.6/2.0
1.6/2.0
2.0/2.5
2.5
2.5
3.15		 0.85
0.85
1.25
1.40
1.40
1.40
1.50
1.50
1.60		 24
30
43
50
60
65
80
92
117



英制螺紋G
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 鋼帶厚度上限01(mm)
Max thickness of steel braid		 鋼絲直徑φ
02(mm)
Steel wire
diameter		 網帶厚度上限
03(mm)
Max.thinkness of
wire braid		 直徑上限E
(mm)
Max.diameter
E
A(mm) B(mm) Min Max
G1/2"
G3/4"
G3/4"
G1"
G1 1/4"
G11/2"
G2"
G2"
G2 1/2"
G2 1/2"
G3"
G3"
4"		 12
12
12
16
16
16
17
17
17
17
19
19
19		 11.65
13.9
19.9
26.2
32.1
38.1
44
50
55.9
61.9
67.9
86		 6.0~13.4
9.5~15.9
12.5~20.9
19~25
22.9~33.9
26~39
35~46.7
38~53.1
45.6~59.4
54.6~65
57~72.1
60.4~76
76~93		 0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.3
0.3
0.3		 0.4
0.4
0.4
0.7
0.7
0.8
0.63
0.63
0.63
0.63
0.81
0.81
0.94		 0.85
0.9/1.25
0.9/1.25
1.25/1.6
1.6/2.0
1.6/2.0
2.0/2.50
2.0/2.50
2.50
2.50
2.50
2.50/3.15
3.15		 0.85
0.85
0.9
1.25
1.40
1.40
1.40
1.40
1.50
1.50
1.50
1.50
1.60		 24
30
35
43
50
60
65
74
80
80
92
92
117

公制螺紋C
Metric		 英制螺紋G
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 鋼帶厚度上限01(mm)
Max thickness of steel braid		 鋼絲直徑φ
02(mm)
Steel wire
diameter		 網帶厚度上限
03(mm)
Max.thinkness of
wire braid		 直徑上限E
(mm)
Max.diameter
E
A(mm) B(mm) Min Max
M16×1.5
M20×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M50×1.5
M63×1.5
M63×1.5
M75×1.5
M75×1.5
M100×1.5		 G1/2
G3/4
G3/4
G1
G1 1/4
G1 1/2
G2
G2
G2 1/2
G2 1/2
G3
G3
G4		 12
12
12
16
16
16
17
17
17
17
19
19
19		 8.6
11.6
13.9
19.9
26.2
32.1
38.1
44
50
55.9
61.9
67.9
86		 6.0~13.4
9.5~15.9
12.5~20.9
19~25
22.9~33.9
26~39
35~46.7
38~53.1
45.6~59.4
45.6~65
57~72.1
60.4~76
76~93		 0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.3
0.3
0.3		 0.4
0.4
0.4
0.7
0.7
0.8
0.63
0.63
0.63
0.63
0.81
0.81
0.94		 0.85
0.9/1.25
0.9/1.25
1.25/1.6
1.6/2.0
1.6/2.0
2.0/2.50
2.0/2.50
2.50
2.50
2.50
2.50/3.15
3.15		 0.85
0.85
0.9
1.25
1.40
1.40
1.40
1.40
1.50
1.50
1.50
1.50
1.60		 24
30
35
43
50
60
65
74
80
80
92
92
117

公制螺紋C
Metric		 英制螺紋G
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 直徑上限E
Max.dia-meter E
(mm)
電纜內徑A(mm)
Cable inner diameter A		 電纜外徑B(mm)
Cable outer diameter B
M16×1.5
M20×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M50×1.5
M63×1.5
M63×1.5
M75×1.5
M75×1.5
M100×1.5		 G1/2
G3/4
G3/4
G1
G1 1/4
G1 1/2
G2
G2
G2 1/2
G2 1/2
G3
G3
G4		 12
12
12
16
16
16
17
17
17
17
19
19
19		 8.6~11
10~13
12~15
17~21
23.4~27.4
30~34
36~40
41~45
49~53.1
55.4~59.4
59~63
66~70
70~86		 6.0~14
11.4~15.9
15.1~20.9
20.3~27.4
26.0~33.9
31.0~40.4
36.5~46.7
43.0~53.1
48.9~59.4
58.0~65.9
60.6~72.1
64.9~78.5
76~93		 24
30
35
43
50
60
65
74
80
80
92
92
117

公制螺紋C
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 鋼帶厚度上限01(mm)
Max thickness of steel braid		 網帶厚度上限
02(mm)
Max.thinkness of
wire braid		 鋼絲直徑φ
03(mm)
Steel wire
diameter		 直徑上限E
(mm)
Max.diameter
E
A(mm) B(mm) Min Max
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M63×1.5
M75×1.5
M100×1.5		 12
16
16
16
17
17
19
19		 11.6
13.9
19.9
26
32
44
55
80		 11.4~15.9
15~20.9
20~27
26~33
31~40
43~53
58~65
76~93		 0.1
0.1
0.1
0.1
0.2
0.2
0.3
0.3		 0.4
0.7
0.7
0.8
0.63
0.63
0.81
0.94		 0.90
1.40
1.40
1.40
1.40
1.50
1.50
1.60		 0.9/1.25
1.25/1.60
1.6/2.0
1,6/2.0
2.1/2.50
2.50
2.50
3.15		 30
43
50
60
65
80
92
117



英制螺紋G
Metric		 螺紋長度L
(mm)
Thread
length		 電纜直徑密封范圍
Sealing range of cable dia.		 鋼帶厚度上限01(mm)
Max thickness of steel braid		 網帶厚度上限
02(mm)
Max.thinkness of
wire braid		 鋼絲直徑φ
03(mm)
Steel wire
diameter		 直徑上限E
(mm)
Max.diameter
E
A(mm) B(mm) Min Max
G1/2"
G3/4"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
G2"
G2 1/2"
G2 1/2"
G3"
G3"
G4"		 12
12
12
16
16
16
17
17
17
19
19
19
19		 11.6
11.6
13.9
19.9
26
32
38
44
50
55
61
67
80		 11.4~15.9
11.4~15.9
15~20.9
20~27
26~33
31~40
36~46
43~53
48~59
58~65
60~72
60~78
76~93		 0.1
0.1
0.1
0.1
0.1
0.1
0.2
0.2
0.2
0.2
0.3
0.3
0.3		 0.4
0.4
0.4
0.7
0.7
0.8
0.63
0.63
0.63
0.63
0.81
0.81
0.936		 0.85
0.90
1.25
1.40
1.40
1.40
1.40
1.40
1.50
1.50
1.50
1.50
1.60		 0.85
0.9/1.25
0.9/1.25
1.25/1.6
1.6/2.0
1.6/2.0
2.0/2.50
2.0/2.50
2.50
2.50
2.50
2.50/3.15
3.15		 24
30
35
43
50
60
65
74
80
80
92
92
117













產品樣本
電子樣本
