詳細信息

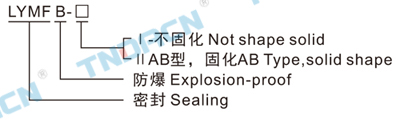

型號含義 Modelimplication
適用范圍 Applications
在爆炸性危險場所作為鋼管或電線配線工程的防爆隔離密
封之用。
It's used as explosion-proof isolation sealing for tube or
cable wiring project.
產品特點 Features
1.具有良好的柔軟性、抗老化性，高溫不流淌， 低溫不脆裂；
2.對金屬、電纜外皮等有良好的附著力， 并具有良好的氣
密性和不傳爆能力；
3.無味、無毒、無腐蝕性，施工、維修方便；
4.配合使用防爆密封隔離密封管接頭,防爆效果更佳.
1.It's with plasticity, aging resistance function, and it will not flowat high temperature, at low temperature it will not be easily broken;
2.It's with adhesive force for metal or cable, also has good tightnessand explosive proof function;
3.It has no taste, poison and corrosion;
4.The efficiency will be better if it is used with explosion-proofisolating sealing connector.
主要技術參數 Main technical parameters
1.耐熱度：90℃，五小時不流淌，不起泡(不固化型)；
2.耐低溫：-50℃，無變化；
3.可塑性：5~10mm；
4.密封性：填入G2"的隔離密封盒內，待固化后施加50Kpa
的水壓，保1min,不滴水，無位移；
5.防爆性：32.2%混合氫氣傳爆試驗，不傳爆；
6.擊穿電壓：2.5mm厚的試件耐壓一分鐘,大于4KV無擊穿閃絡。
1.Heat resistance:90℃,it'll not flow in 5 hours and no dunk;
2.Low temperature resistance: no change at -50℃
3.Plasticity:5~10mm;
4.Sealing feature: fill in G2" isolation sealing box, It doesn'tdrop and displace within 1 min under 50 kpa water pressure;
5.Explosion proof feature：32.2% mixed hydrogenium proga-gated blast test, it'll not explode;
6.Shocking voltage: withstand voltage in 1 minutes for 2.5mmtest part, it has no shocking flashover phenomena whenmore then 4KV.
施工要求 Construction request
1.施工前應將電線、儀表等清除干凈，不得有油、水、灰土油污；金屬表面應將銹除凈，以免影響施工效果；
2.密封膠泥施工時要填實，其深度不小于50mm；
3.做料堵的填充物要用不燃性材料，如石棉等；
4.冬季施工時，如密封膠泥變硬， 應將其放在室溫內， 放置一段時間后再使用,但不能用明火直接烤。
1.The cable wire and meter must be cleaned up before con-struction ,it must be no oil, water and dust ,rust on the surfaceof metal must be cleaned sealing daub;
2.The daub must be filled completely, the deepness is not lessthan 50mm;
3.It must fit with flame-proof material such as asbestos;
4.In winter it must be placed at room temperature environment,for some time ,but it can not be baked on fire.

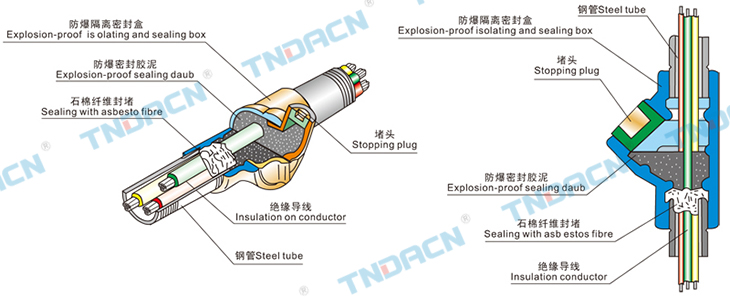

防爆膠泥和防爆隔離密封盒的使用示圖
Sketch of explosion-proof sealing daub and explosion-proof isolating and sealing box
