產品總匯

當前位置： 首頁 > 產品總匯 > 粉塵防爆電器類 > BCJ-F系列粉塵防爆照明應急兩用燈（DIP）

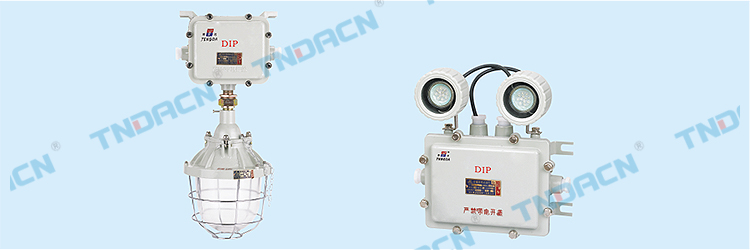

BCJ-F系列粉塵防爆照明應急兩用燈（DIP）

詳細信息

BCJ-F系列粉塵防爆照明應急兩用燈（DIP）
BCJ-F type dust explosion-proof emergency iillumination (DIP)

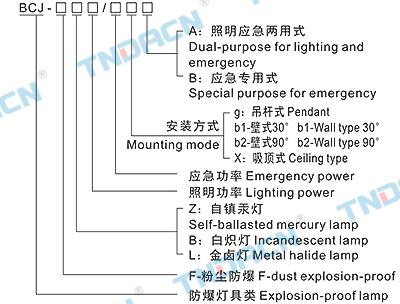

型號含義 Model implication
適用范圍 Applications
1.20區、21區、22區危險場所；
2.可燃性粉塵環境；
3.溫度組別：T1~T4/T5/T6；
4.可配裝白熾燈、汞燈、金鹵燈；
5.應用于石油、化工、航天、軍工等場所。


1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.Temperature class:T1~T4/T5/T6;
4.Equipped with incandescent lamp, mercury vapor lamp,metal halide lamp.
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.


產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.應急專用燈中正常照明燈和應急照明燈各自獨立，適應安裝條件許可的場所；照明應急兩用等，正常照明和應急照明共用一個燈體，光源獨立。
3.內裝免維護鎳鎘電池組，在正常供電下自動充電，事故斷電或停電時應急燈自動點亮。
4.鋼管或電纜布線均可。
5.可根據用戶要求設置試驗按鈕和指示燈。

1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder
adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Normal lamp and emergency lamp of the divsion type are respectively suitable to the apporpriate sites, but the dualpurpose for lighting and emergency type share a same lanp body, moreover light source is independent.
3.Under the normal power-supplying condition, inner Nicketl-Cadmium battery can recharge automatically, so that the
emergency lamp will turn on automatically when the power lose because of accident or power failure.
4.Conduit wiring or cable wiring.
5.It can be equipped with test button and indicator according to user's requirement.
主要技術參數 Main technical parameters
防爆標志
Ex-mark		 防護等級
Protection grade
 		 電纜外徑(φ,mm)
Cable's outer diameter		 進線口螺紋(G")
Inlet's thread
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) IP54 10~14 3/4

配用光源 Supplied with light source

正常照明 Normally luminating 應急照明 Emergency luminating
125W自鎮汞燈 Self-ballasted mercury lamp
200W白熾燈 Incandescent lamp
100W金鹵燈 Metal halide lamp		 20W碘鎢燈 Iodin-tungsten lamp

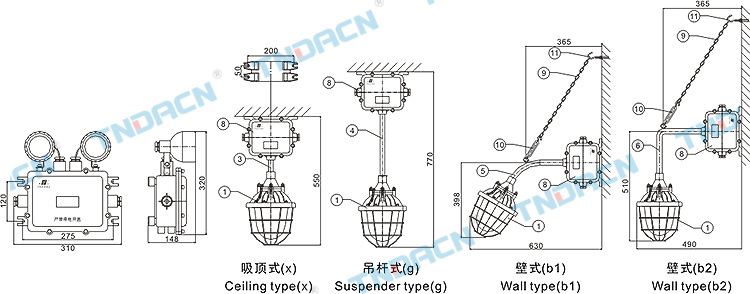

外形及安裝舉例 Outline and mounting example


安裝配件表 Installation accessories and spare parts

序號
No.		 名稱 Description 序號
No.		 名稱 Description
1
2
3
4
5
6
7
8		 燈具Lamp
U型管夾 U-tube clip
管接頭 Fittings
吊桿 Boom
30°彎桿 30°bend-rod type
90°彎桿 90°bend-rod type
吊燈盒Lighting box
防爆整流器 Explosion-proof ballast		 9
10
11
12
13
14
15
16		 鏈條Chain
cc型索具螺旋扣cc-type rigging screw
吊鉤Hook
防爆三通接線盒Explosion-proof terminal box links
平臺燈桿Platform Pole
平臺彎桿 Platform bend-rod type
活接頭 Union
底板 Bottom board
