當前位置: 首頁 > 產品總匯 > 粉塵防爆電器類 > BdH-F系列粉塵防爆鎮流器(DIP)

BdH-F系列粉塵防爆鎮流器(DIP)

詳細信息

BdH-F系列粉塵防爆鎮流器(DIP)
BdH-F type dust explosion-proof ballast (DIP)

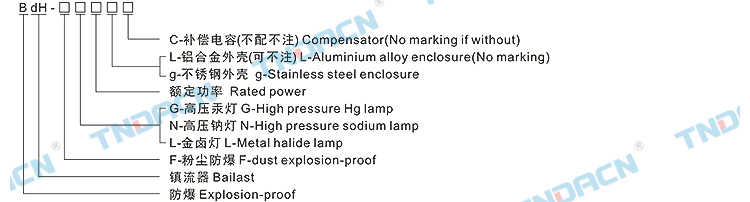

型號含義 Modelimplication
適用范圍 Applications
1.20區、21區、22區危險場所;
2.可燃性粉塵環境;
3.戶外(IP65*);
4.溫度組別:T1~T4/T5/T6;
5.應用于石油、化工、航天、軍工等場所。



1.Hazardous:division zone 20,21,&22;
2.Flammable dust atmospheres;
3.outdoor(IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.



產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型,表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良,表面塑粉附著力強具有良好的防腐能力,表面光潔,美觀大方;
2.鋼管或電纜布線;
3.可按要求做成補償器。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder
adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2. Wiring with steel tube or cable;
3.It can be made into compensator on request.
主要技術參數 Main technical parameters
材質:不銹鋼材質 Material: Stainless steel
防爆標志
Ex-mark
功率(W)
Power


電壓(V)
Voltage
防護等級
Protection
grade
電纜外徑(φ,mm)
Cable's outer
diameter
進線口螺紋
(G")
Inlet's thread
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) 70~1000 220 IP65 10~14 3/4
材質:鋁合金材質 Material: Aluminium alloy
防爆標志
Ex-mark
功率(W)
Power


電壓(V)
Voltage
防護等級
Protection
grade
電纜外徑(φ,mm)
Cable's outer
diameter
進線口螺紋
(G")
Inlet's thread
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標) 70~1000 220 IP65 10~14 3/4

*:訂購時需提出。Indicate it when ordering.

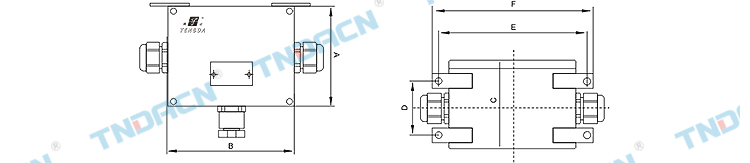

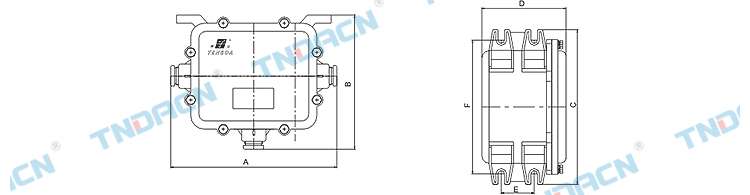

外形及安裝尺寸 Outline & installation dimensions

鋁合金外殼 Aluminium alloy enclosure

不銹鋼 Stainless steel

材質:鋁合金材質 Material: Aluminium alloy
A B

C D E F 備注 Remark
248 200 228 124 50 200 L70,L100,N70,N100,N110,G80,G125,
L150,L175,G175,N150
295 210 276 115 52 248 L250,L400,G250,G400,N250,N400
不銹鋼外殼 Stainless steel enclosure
A B

C D E F 備注 Remark
152 170 122 70 234 211 G80,G125,G250,L70,L110L
175,L250,N70,N100,N110,N1510
160 210 122 70 234 251 L400,G400,N250,N400
