詳細信息

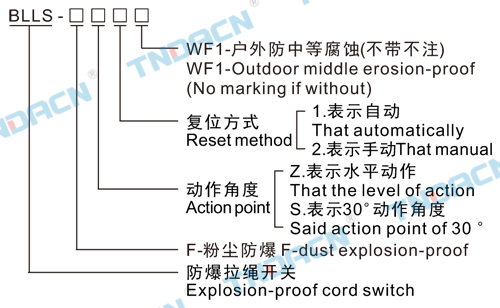

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable
dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T6;
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on
產品特點 Features
1.殼體采用高強度鋁合金一次性壓鑄成型，表面經高速 拋
丸清理后高壓靜電噴塑，外殼結構緊湊合理，強度好，
防爆性能優良，表面塑粉附著力強，具有良好的防腐性
能，外表整潔，美觀大方；
2.是輸送機自動區控制不可缺少的傳感元件；
3.具有強度高，重量輕，密封好，使用壽命長等優點；
4.鋼管或電纜布線。
1.Enclosure is cast with high intensity aluminum alloy, surfaceis sprayed with plastic by high voltage static electicity, after
the highly impeller cleaning. The structure of enclosure isreasonable, high-intensive and perfect-explosive and thesurface plastic of good adhesive force is excellent in explosion-proof and appearance;
2.Is the automatic zone control conveyors indispensable sensor;
3.With high strength, light weight, sealed, and long life;
4.Wiring with steel tube or cable.
主要技術參數 Main technical parameters

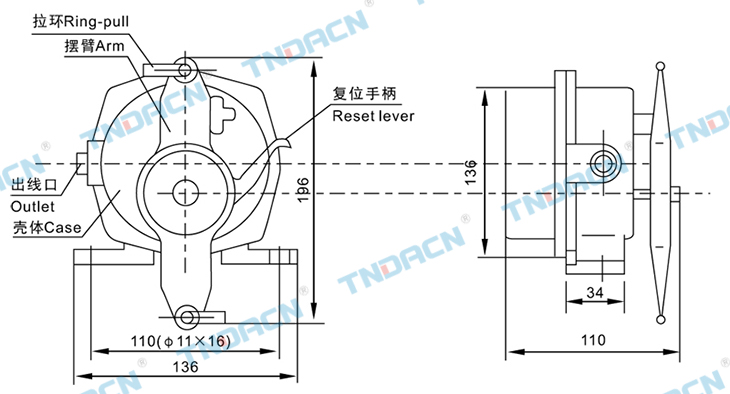

外形及安裝尺寸 Outline&installation dimensions
