BBG系列防爆冰箱(柜)(IIB、IIC)

詳細信息

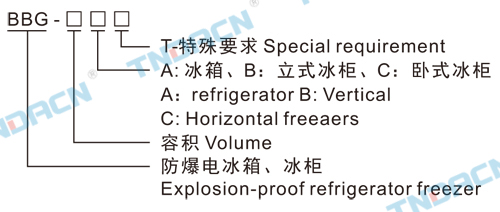

型號含義 Model implication

適用范圍 Applications

1.爆炸性氣體混合物危險場所:2區;
2.爆炸性氣體混合物:ⅡA、ⅡB、ⅡC;
3..溫度組別:T1~T6;
4.戶內、戶外(IP65);
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 2;
2.Mixed explosive gas atmosphere: class ⅡA,ⅡB,ⅡC
3.Temperature class: T1~T6;
4.Indoor or outdoor(IP65,IP66*);
5.Widely using in the fields of oil, chemical industry, spaceflight,war ind-ustru and so on.

產品特點 Features

1.采用先進的防爆技術,結合可靠的防燭工藝制成;
2.整機安全可靠、性能優良,外型美觀,安裝運輸方便;
3.冰箱(柜)的設計嚴格按照國家相關標準生產;
4.適用于在易燃易爆危險場所用于物品的冷藏、冷凍;
5.可廣泛使用于石油、化工、礦井、醫藥、航空航天、軍事炸藥等部分。
1.Advanced explosion-proof techlonoly, safe and reliable,made with reliable explosion-proof process;
2.Safety and reliabity, excellent ferformance, fine outline.convinent for installtion and transpotation;
3.Design strictly according tothe national standard;
4.Suitable to refrigerate flammbale and explosive substancesor other articles in flammable and explosive enviroments;
5.Used widly in petroleum, chemical ,medicine, aviationproject and military induatries.

主要技術參數 Main technical parameters

型號 type BBG-A BBG-B BBG-C
名稱 Nnme 雙門雙溫 two door temperature 單門單溫 one door single temperature 單門雙溫 one door temperature
類別 Type 立式 vertical   臥式 Horizontal
電源(V/HZ)power

220/50
防觸電保護類型 type of shock-proof 1
防爆標志 Ex-mark ExdmⅡBT4等效于 Ⅱ2G ExdmⅡBT4(歐標)
ExdmⅡCT4等效于 Ⅱ2G ExdmⅡCT4(歐標)
總有效容量(L)Total volume 212 210 260
冷藏室容積(L)Cold storage volume 123 210 260
冷凍室容積(L)freezer volume 89
冷凍能力(kb/24h)freezer blicity 4.0 4.0
制冷劑 refrigerants R12 R12 R12
外型尺寸outcione dimension 515*600*1340 515*600*1340 550*568*1800
凈重net wright 85 81 100

注:以上參數僅供參考,具體數據詳見《產品使用說明書》或來電咨詢。
Note:Above parameter is only for referevce,please observe our product instruction or contact us for more information
