當前位置： 首頁 > 產品總匯 > 防水防塵防腐類 > FCD 系列防水防塵方燈

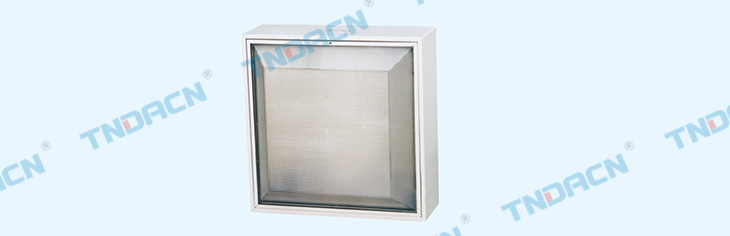

FCD 系列防水防塵方燈

詳細信息

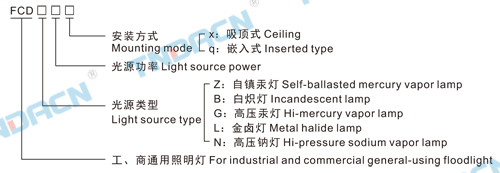

型號含義 Modelim plication

適用范圍 Applications

1環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.多水、多塵、潮濕等環境，防弱酸、弱堿腐蝕。
4.廣泛應用于食品、制藥、車站、加油站、商場、大型廳堂等工廠企業及商品場所。
5.根據配置的鎮流器，必須選擇匹配的光源，用戶電源電壓波動范圍必須滿足國家標準要求。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of weak acid, weak alkali and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, hell, food. Medicine, industrialand commercial concourse andso on.
5.According to suited ballast, they must choose illumination accordingly. The user's powervoltage fluctuant range must accordto the national standard.

結構特點 The features of structure

1.外殼采用優質鋼板折彎成形，可按用戶要求采用不銹鋼板制作。
2.照明罩采用棱鏡式聚碳酸酯制成，具有光線柔和、低眩光等優點。
3.一體式結構、鎮流器、觸發器、燈泡裝于一體(燈泡用戶自配)。
4.本產品表面高壓靜電噴塑處理、抗弱酸、弱堿腐蝕，防水、防塵、防腐等級為F1、防護等級IP65。
5.密封件采用硅橡膠、耐油、耐酸、耐堿、耐高溫。
1.The shell is constructed of bended steel plate, which can be made by stailess steelaccording to customer's demand.
2.The transparent enclosure is made of polycarbonate of prismtype with the character of softlight and low dizziness.
3.One-body structure, ballast, trigger and bulb are installed together(bulb is selected bycustomer).
4.The products surface is static-sprayed plastic high-pressionly, the products can withstandthe corrosion of weak acid, weak
alkali and have the function of water-proof of dust-proof, anti-corrosion class is F1, theprotection class reaches IP65.
5.The sealers adopt silicon rubber, which can withstand oil, acid, alkali and high temperature.

殼體分類 Shell's classification

殼體類型 Kind of shell A×A B×B C×C G×G D×D E F 功率(W) Power
Ⅰ 390×390 360×360 300×300 310×310 440×440 160 220 Z125,Z160,N110,
G125,L100
Ⅱ 580×580 550×550 400×400 490×490 630×630 200 280 N150,G175,L175,
N250,G250,L250,
L400,G400,
L400,Z250,Z450

主要技術參數 Main technical parameters

光源類型
Lamp type		 額定電壓(V)
Rated voltage		 額定功率(W)
Rated power		 防護等級
Protection
grade		 防腐等級
Corrosion-proof
grade		 燈座代號
Lamp socket
高壓汞燈
Hi-mercury
vapor lamp		 AC220V 125,175,250,400 IP65 F2 E27
E40
金鹵燈
Metal halide lamp		 100,175,250,400
高壓鈉燈
Hi-pressure sodium
vapor lamp		 110,150,250,400
自鎮汞燈
self-ballasted
mercury vapor lamp		 125,160,250,400

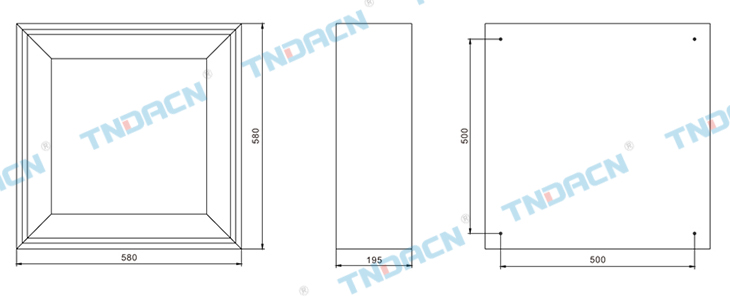

外形及安裝舉例 Outline and mounting example
