當前位置： 首頁 > 產品總匯 > 防水防塵防腐類 > FHZ 系列防水防塵防腐轉換開關

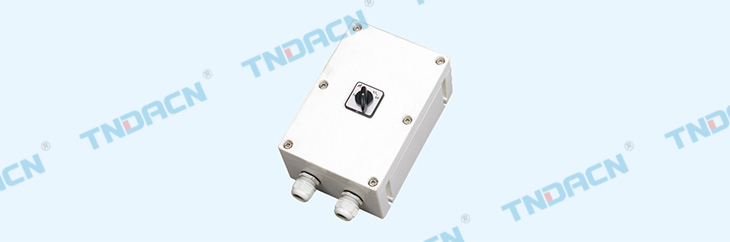

FHZ 系列防水防塵防腐轉換開關

詳細信息

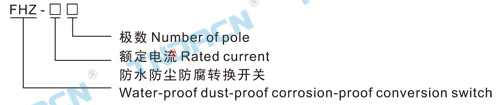

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿腐蝕，多水、多塵、潮濕等環境。
4.廣泛用于石油、化工、倉庫、食品、制藥、軍工等工廠企業。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali, and the environment of more water, more dust and humidity.
4.They are widely used in the lines of petroleum, chemistry, warehouse, food, medicine, war industry and so on.

產品特點 Features

1.外殼采用增強玻璃纖維不飽和聚酯樹脂材料，模壓成型，外形美觀。具有抗老化、不變形、抗沖擊、抗靜電、耐腐蝕等
優點。
2.本系列產品抗強酸、強堿、鹽、海水、氯離子腐蝕，防腐等級F2。
3.本系列產品為迷宮式防水結構，具有良好的防水、防塵性能，防護等級為IP65。
4.所有外露緊固件均采用不銹鋼，密封件采用硅橡膠，耐油、耐酸、耐堿、耐高溫、抗老化。
5.電纜布線。
6.可作為照明開關使用。
7.開關有多種功能可供用戶選擇。
1.The cases adopt strong flass-fibre, and unsaturated, ployster resin, and are moldule, with light structure and beautifulappearance.
2.They have good advantages of aging resistance, shape resistance, high impact, anti-static and anti-corrosion, etc.
3.This series product can withstand the corrosion of strong acid, strong alkali, salt, amnonia, chlorine, corrosion-proofgrade is F2.
4.This series product adopt devions-labyrinthian strctre, they have performance of water-proof and dust-proof, theprotection grade reaches IP65.
5.All the leakage fixers adopt stainless steel, sealers adopt silicon rubber, they can withstand oil, acid, high temperatureand are not easy to age.
6.It can be used as illumination switch.
7.The switch has many function which can be selected by customer.

主要技術參數 Main technical parameters

產品型號
Product type		 額定電壓(V)
Rated voltage		 額定電流(A)
Rated current		 防腐等級
Erosion-proof class		 防護等級
Degree of protection		 電纜外徑(φ,mm)
Cable's outer
diameter
FHZ-□ AC220/380(V) 10A
25A
63A		 IP65 F2

φ8-φ14
φ12-φ17
φ16-φ25

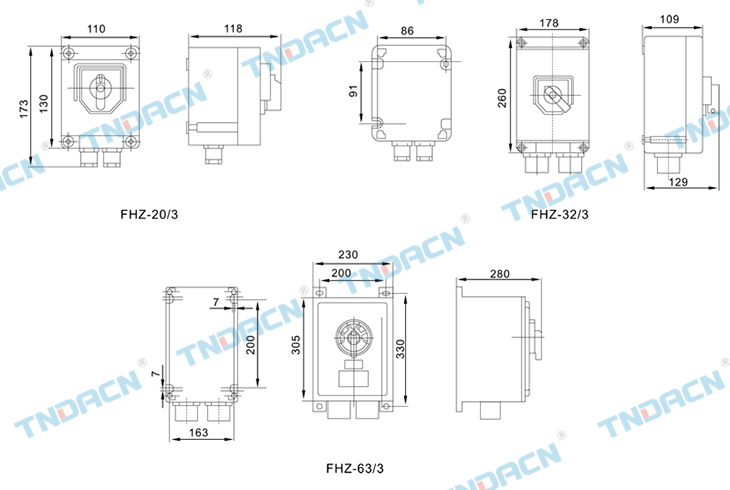

外形及安裝尺寸 Outline & installation dimensions
