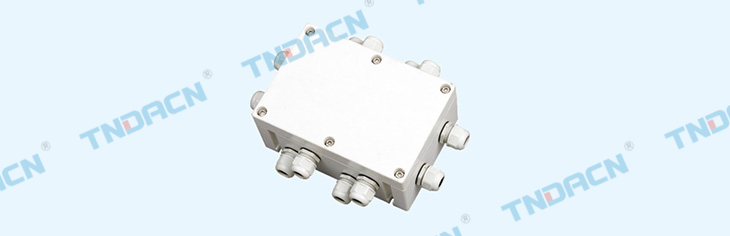

FJX-S系列防水防塵防腐接線箱

詳細信息

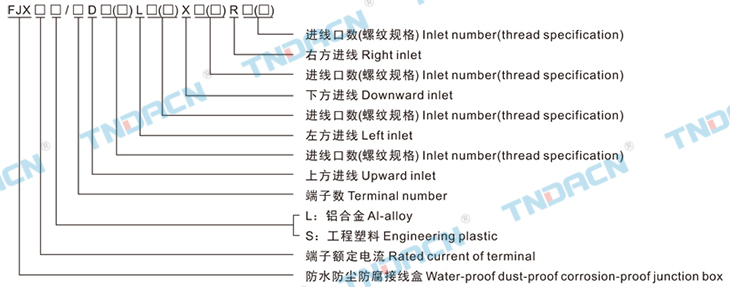

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿、鹽、氨、氯離子腐蝕，多水、多塵潮濕等環境。
4.廣泛應用于石油、化工、倉庫、食品、制藥、軍工等工廠企業。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali, salt, ammonia.
4.They are widely used in the lines of petroleum, chemistry, dock, food, medicine, war industry and so on.

產品特點 Features

1.壓制成型，表面噴塑。
2.螺紋規格可特別，如NPT螺紋等。
3.主要用于管路配線、配管，接線、分線。
4.此系列產品正常為鋼管連接，電纜進線請注明。
1.It is casted into shape with plastic-sprayed surface.
2.Specification and features of vein, such as NPT vein.
3.Mainly used in tubing providing-wire, providing-tube, connecting wire, paneling wirepositions.
4.The seies product uses steel tube to connect, eletrical inlet-wire nust be noted.

主要技術參數 Main technical parameters

產品型號
Product type		 額定電壓(V)
Rated voltage		 額定電流(A)
Rated current		 螺紋規格
Thread
specification		 防腐等級
Corrosion-proof
grade		 防護等級
Protection grade
FJX□ 380V <400A 用戶指定
Decided by user		 F1
F2

IP65

電纜夾緊密封接頭 Cable clamping sealing connector

管接頭 Pipe connector(G)

管螺紋
Pipe thread		 管通徑
Pipe diameter
(mm)		 電纜外徑
Cable outer dia.
(mm)
G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"		 15
20
25
32
40
50		 φ7~φ10
φ10~φ14
φ14~φ18
φ15~φ23
φ18~φ30
φ25~φ38

BDM7型或BDM8型

管螺紋
Pipe thread		 管通徑
Pipe diameter
(mm)		 電纜外徑
Cable outer dia.
(mm)

G1/2"
G3/4"
G1"
G1 1/4"
G1 1/2"
G2"
/

 M16×1.5
M20×1.5
M25×1.5
M32×1.5
M40×1.5
M50×1.5
M63×1.5		 φ5~φ8
φ6~φ12
φ9~φ13
φ10~φ18
φ17~φ25
φ23~φ32
φ32~φ44

*.要求公制螺紋需說明 Explain if asked for metric thread

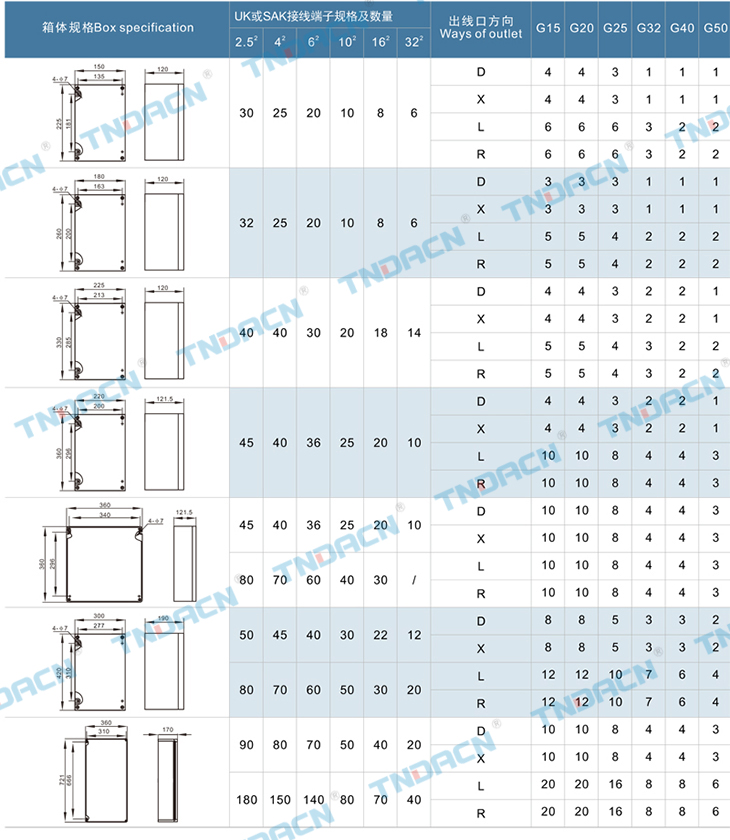

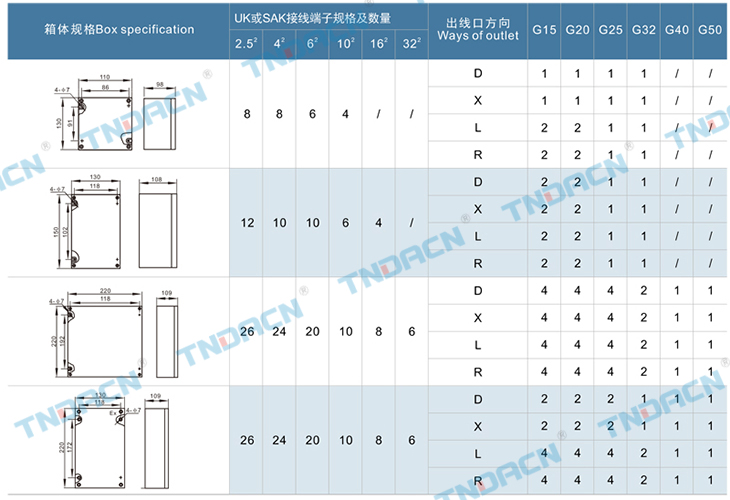

外形及安裝尺寸 Outline & installation dimensions

進出線口螺紋規格
Inlet and outlet thread sizes		 G15 G20 G25 G32 G40 G50
進出線口長度
Length of inlet and outlet		 40 50 50 55 55

65
