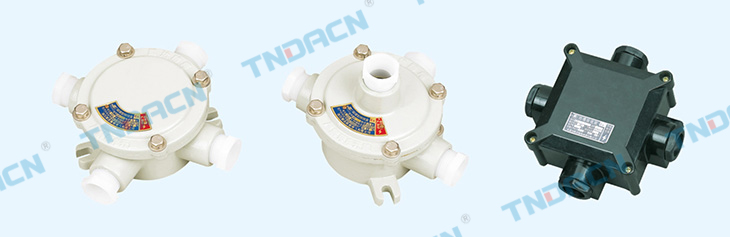

FAH 系列防水防塵防腐接線盒

詳細信息

型號含義 Modelim plication

適用范圍 Applications

1.環境溫度-25°至55°。
2.安裝高度不超過海拔2000m。
3.強酸、強堿、鹽、腐蝕、多水、多塵、潮濕等環境。
4.廣泛用于石油、化工、倉庫、食品、制藥、軍工等工廠企業。
1.Ambient temperature is-25°to 55°.
2.The height of installment can't over 2000 meters above sea level.
3.They can withstand the corrosion of strong acid, strong alkali,salt, and the environment of more water, more dust andhumidity.
4.They are widely used in the lines of petroleum, chemistry,warehouse, food, medicine, war industry and so on.

產品特點 Features

1.鋁合金壓鑄成型，表面噴塑。
2.螺紋規格可特制，如NPT螺紋等。
3.主要用于管路配線、配管、接線、分線以及做為燈具安
裝附件用。
4.此盒作為防水防塵防腐外殼，內部未配接線端子，由用
戶自由連線。
5.此系統產品正常為鋼管連接，電纜進線請注明。
6.可按用戶要求做成鑄鋼或工程塑料。
1.Aluminum die casting, surface spray.
2.Specification of thread can be specially made, such as NPTthread etc.
3.Mainly used in tubing providng-wire, providing-tube, connectingwire, paneling wire positions, lamp implement installingaccessories.
4.The box as a shell has the feature of water-proof, dust-proofand corrosion-proof, terminal is not provided inside the boxand is connected freely by the users.
5.The series product uses steel tube to connect, electrical inlet-wire must be noted.
6.According the user's demand, make steel casting and engineerplastic.

主要技術參數 Main technical parameters

FHD系列防水防塵防腐接線盒代號，外形及名稱一覽表。
FHD type water-proof dust-proof corrosion-proof junction box code, outline and descriptions as the following table.

代號
Code		 外形
Outline		 名稱
Name		 代號
Code		 外形
Outline		 名稱
Name
A   一通平 1 entry in horizon F

一通吊 1 entry hung type
B   直二通平 2 direct entries in horizon G   直二通吊 2 direct entries hung type
C   三通平 3 entries in horizon H   三通吊 3 entries hung type
D   四通平 4 entries in horizon I   四通吊 4 entries hung type
E   直角二通平 2 perpendicular entries, in horizon J   直角二通吊 2 perpendicular entries, hung type

注：
1.“ ”表示平臺，“ ”表示吊蓋
2.在正常情況下，吊蓋與通頭同口徑，如特殊要求可特制。、
3.通頭一般為圓柱管螺紋G1/2"、G3/4"、G1"如特殊要求可特制。
標注舉例：
1.AH-DIP3/4B含義：AH-DIP粉塵防爆接線盒，管螺紋為G3/4"直二通平蓋。
2.AH-DIP1/2J含義：AH-DIP粉塵防爆接線盒，管螺紋為G1/2"直角二通吊蓋。
Note:
1." "horzontal cover," " hung cover.
2.Generally the diameter of entry is equal to that of hung cover hole. Special requirement can be available.
3.The entry is often made as pipe thread G1/2", G3/4",G1", also special requirement can be made.For Example:
1.AH-DIP3/4B means: AH-DIP dust explosion-proof junction box, pipe thread G3/4", 2 directentries with horizontal cover.
2.AH-DIP1/2J means: AH-DIP dust explosion-proof junction box, pipe thread G1/2", 2perpendicular entries with hung cover.

主要技術參數 Main technical parameters

產品型號
Product type		 額定電壓(V)
Rated voltage		 額定電流(A)
Rated current		 螺紋規格
Thread
specification		 防腐等級
Corrosion-proof
grade		 防護等級
Protection grade
FJX□ 380V <400A 用戶指定
Decided by user		 F1
F2

IP65

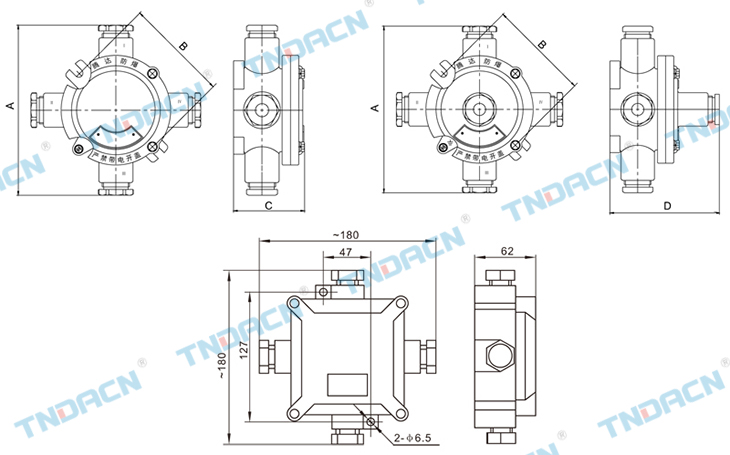

外形及安裝舉例 Outline and mounting example

接線盒外形尺寸 Junction box outline & dimension

電纜外徑(φ,mm)
Cable's outer
diameter		 管螺紋
(G)
Pipe thread		 A B C D 電纜外徑(φ,mm)
Cable's outer
diameter		 管螺紋
(G)
Pipe thread		 A B C D
φ8~φ10 1/2 163 110 65 110 φ15~φ23 1 1/4 185 110 80

/
φ8~φ14 3/4 163
 		 110 65 110 φ18~φ30 1 1/2 185 110 80 /
φ12~φ18 1 163 110 65 / φ25~φ38 2 225 120 98 /
