當前位置： 首頁 > 產品總匯 > 防爆電器類 > BQXB系列防爆變頻器（IIB）

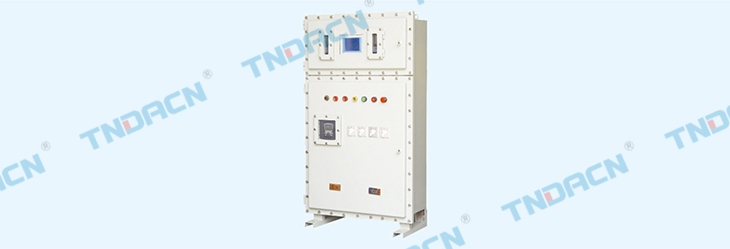

BQXB系列防爆變頻器（IIB）

詳細信息

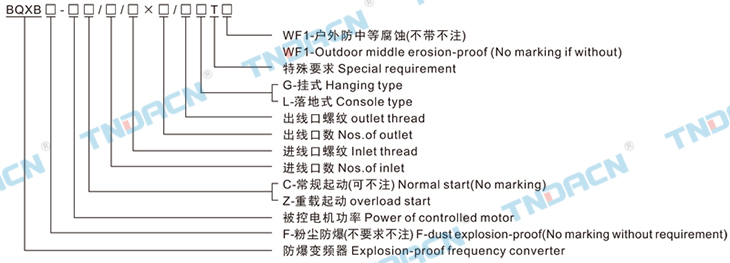

型號含義 Model implication

適用范圍 Applications

1. 1區、2區危險場所或20區、21區、22區危險場所；
2. ⅡA、ⅡB爆炸性氣體環境或可燃性粉塵環境；
3. 戶內、戶外(IP54)；
4. 溫度組別：T1~T4；
5.應用于石油、化工、航天、軍工等場所。
1.Enclosure is made of aluminium alloy or welded with steel
plate, surface is sprayed with plastic;
2.Built-in AC contactor, thermal relay, circuit-breaker, time
delay relay, cur r e n t I n s t r ument transformer, voltmeter,ammeter, transfer switch and indicator lamp;
3.With overload, short circuit, low voltage, short phase protectionfunctions;
4.It can be made on requests;T1~T4
5.Wiring with steel tube or cable.

產品特點 Features

1.鋁合金外殼或鋼板焊接，表面噴塑；
2.內裝富士、西門子或施耐德等公司生產的變頻器、斷路器、信號燈等元件
3.它主要通過改變其輸出頻率來調節普通三相異步電動機的轉速， 以達到生產工藝要求或?qū)崿F(xiàn)節電的目的， 節電率可達30%～60%，也可作為電動機軟起動控制器，也可通過傳感器、變送器等控制電路組成閉環調速系統，安裝操作簡單，功率因數恒定，同時具備故障顯示等各種功能；
4.具有過電流、短路、過電壓、欠壓、斷相等多種保護，可數字顯示頻率、轉速以及負載率或電流等，可手動調節頻率，可
設定轉速按時間變化的工藝曲線，也可由DCS系統給出信號來控制其頻率；
5.鋼管或電纜布線。
1.Enclosure is cast with aluminium alloy, or welded by steel plate, surface is sprayed with plastic, fine outline;
2.Built-in frequency converter, circuit breakers, signal lamps etc of FWI ro sehneider;
3.It can adjust the rotate apeed of three phase asynchronism motor by changing output frequency, percent of energy servingcan reach 30%-60%, it also can be used as motor soft start controller, the transducer, transmission are composed a sealingtiming system, simple digital operation, power factor is invariable and with many functions, like error displaying;
4.With protection of over current, short circuit, over voltage, short voltage and loss phase, and adjust the frequency, bymanual the craftwork curve can be set according to rotating speed changing with time transfering, the DCS system also cansend out signal to control the frequecy;
5.Wiring with steel tube or cable.


主要技術參數 Main technical parameters

防爆標志
Ex-mark		 防腐等級
Erosion-proof-class		 防護等級
Degree of protection		 進出線口螺紋
Inlet thread(G")		 進線口螺紋
Inlet thread (G")
ExdⅡBT4 等效于 Ⅱ2
G ExdⅡBT4(歐標)
ExdeⅡBT4 等效于 Ⅱ2
G ExdeⅡBT4(歐標)
DIP A20 TA,T4 等效于 Ⅱ
1D Ex tD A20 T4(歐標)		 WF1 IP54 G1"~G2" φ14~φ38



型號 Type 電機功率（KW）
Motor Power		 輸入電壓(V)
Input voltage		 變頻器功率(KW)
Power of transducer		 變頻器瞬間電流上限(A)
Max. instantaneous current
BQXB-1.5
BQXB-2.2
BQXB-3
BQXB-4
BQXB-5.5
BQXB-7.5
BQXB-11
BQXB-15
BQXB-18.5
BQXB-22		 1.5
2.2
3
4
5.5
7.5
11
15
18.5
22		 380 1.5
2.2
3
4
5.5
7.5
11
15
18.5
22		 3
4.5
6
9.5
12
16
22
30
37
44

功率大于22KW的，若需訂購，請與我公司的技術人員聯系。Please contact with our technicians, if the power you ordered is over 22kw.

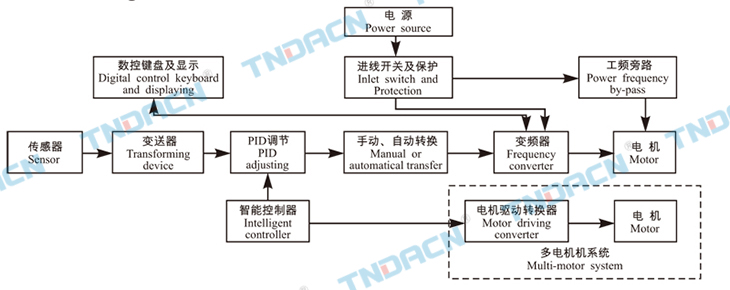

系統圖 Syestem drawing

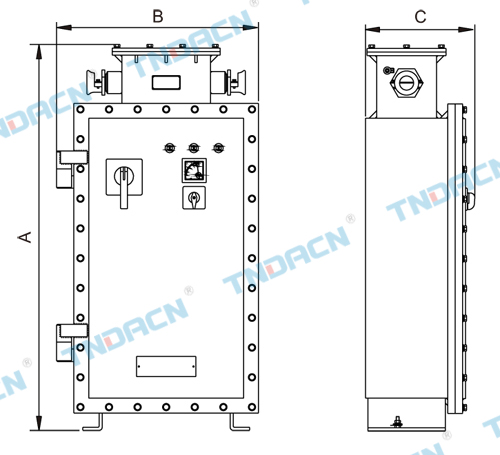

外形尺寸 Outline dimensions

型號Type A B C
BQXB-13~30
BQXB-37~75
BQXB-95~135		 700
1330
1450		 350
560
630		 300
410
440

BQXB防爆軟起動器外型尺寸僅供參考，具體尺寸按實際功率來
確定。
BQXB proof soft starter Dimensions are for reference only to the
specific size of the actual power OK.
