詳細信息

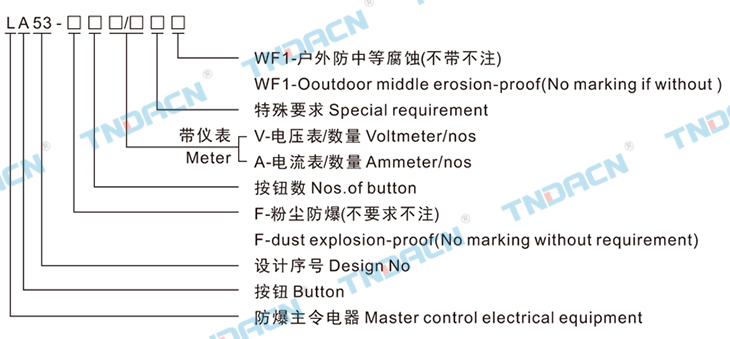

型號含義 Model implication
適用范圍 Applications
1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP65、IP66*)；
4.溫度組別：T1~T6
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers:class ⅡA ⅡB ⅡC or inflammable dust environment;
3.Indoor or outdoor(IP65,IP66*);
4.Temperature class:T1~T6;
5.Widely using in the fields of oil, chemical industry, spaceflight, war ind-ustru and so on.
產品特點 Features
1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、
防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.內可裝防爆型按鈕和增安型電流表；
3.帶電流表的按鈕可監視設備運行狀態;
4.鋼管或電纜布線。
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Built-in flameproof button and increased safety ammeter;
3.Button with ammeter could supervise running state of facilities;
4.Wiring with steel tube or cable.
主要技術參數 Main technical parameters
*. 要求IP66，需注明。 IP66 Requirements must be marked

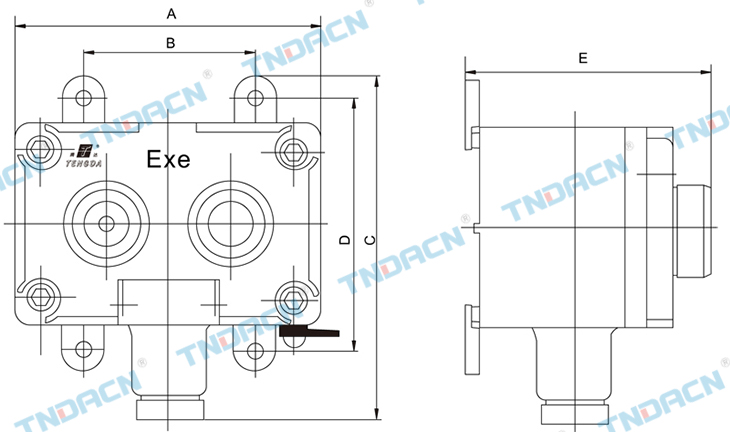

外形及安裝尺寸 Outline & installation dimensions
