BCM系列防爆馬路燈（ⅡB、ⅡC、e）

詳細信息

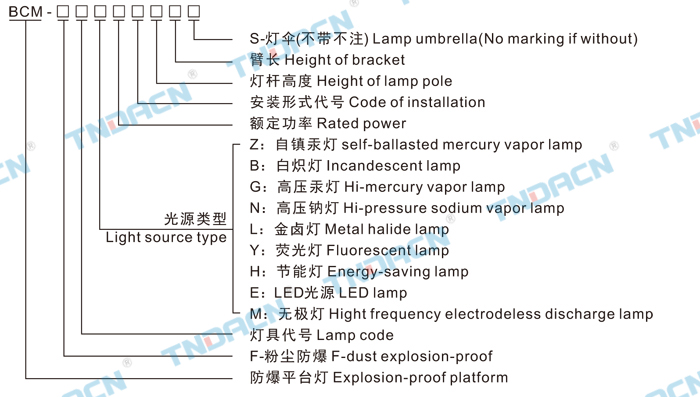

型號含義 Model implication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶外(IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3. outdoor(IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

產品特點 Features

1.燈具外殼：鑄鋁合金殼體壓鑄成型，表面噴塑；不銹鋼板拉伸成型；SMC或DMC模壓成型；
2.燈桿為鍍鋅鋼管表面噴塑。具有較好的防腐能力?；捎描T鐵制造而成，牢固穩定。
3.燈桿和基座均可用戶要求特制。
4.電纜布線。
1.The enclosure is cast with aluminium alloy or strecthed by stainless steel stretching and SMC or DMC extruding, Surface is sprayed with plastic;
2.Junction box or special ballast of road lamp is installed.
3.Lamp pole is galvaniced pipe with plastic-sprayed surface. It can be well corrosive-proof. The base made of cast iron is steadly fixed. Lamp pole and base can be specially made as required.
4.Wiring with or cable.

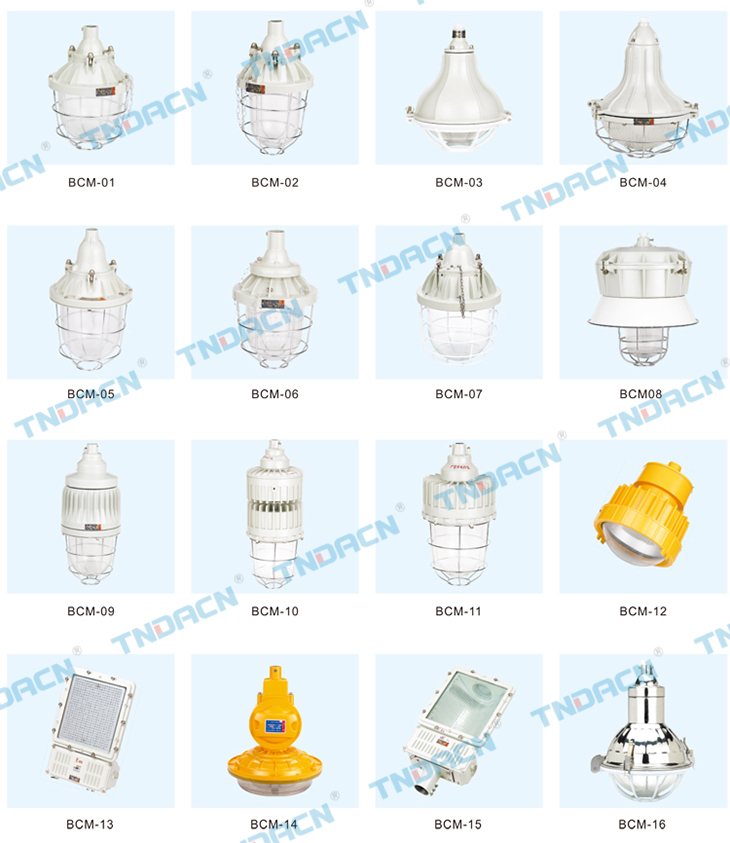

主要技術參數 Main technical parameters

燈具代號
Code of lamp		 燈具型號
Type		 防爆標志
Ex-mark		 主要技術參數
Main technical parameters
BCM-01

B3C-200(大Big)

 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-02 B3C-200(小Small) ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-03 BGL-200L ExeⅡT3等效于 Ⅱ2G ExeⅡT3(歐標)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(歐標)
BCM-04 BGL-250L ExeⅡT2等效于 Ⅱ2G ExeⅡT2(歐標)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(歐標)
BCM-05 B3C-250 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-06 ccd-200 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-07 B3C-400 ExdⅡBT4等效于 Ⅱ2G ExdⅡBT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-08 BF-L150 ExeⅡT2等效于 Ⅱ2G ExeⅡT2(歐標)
DIP A20 TA,T2等效于 Ⅱ1D ExtD A20 T2(歐標)
BCM-09 ccd91-L250 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)
BCM-10 ccd92-N250 ExdⅡBT6等效于 Ⅱ2G ExdⅡBT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)
BCM-11 ccd93-105W ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)
BCM-12 ccd94-30W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-13 ccd95-30W ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-14 BEW ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-15 BTd92 ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)
BCM-16 BGL-250G ExeⅡT3等效于 Ⅱ2G ExeⅡT3(歐標)
DIP A20 TA,T3等效于 Ⅱ1D ExtD A20 T3(歐標)



光源Light
source		 白熾燈
Incandescent
lamp		 自鎮汞燈
Self-ballasted
mercury lamp		 高壓汞燈
Hi-pressure
mercury lamp		 高壓鈉燈
High-pressure
sodium lamp		 金鹵燈
Metal halide
lamp		 燈座
Socket
型號 Type
BCP-01

200W

 125,160W 125W 70,110W 70,100W E27
BCP-02 200W 125,160W 125W 70,110W 70,100W E27
BCP-03 200W 125,160W 125W   70,100W E27
BCP-04 300W 250W 175,250W   175,250W E40
BCP-05 300W 250W 175,250W 150,250W 175,250W E40
BCP-06 200W 125,160W 125W 70,110W 70,100W E27
BCP-07 450W 250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-08   125,160W 125W 175,250W 70,100,175,250W E27,E40
BCP-09   250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-10   250,400W 175,250,400W 150,250,400W 175,250,400W E40
BCP-11 內裝節能燈 Built-in energy-saving lamps(65,85,105,125)W
BCP-12 內裝LED節能燈 Built-in LED energy-saving lamps(20,30,40,50)W
BCP-13 內裝LED節能燈 Built-in LED energy-saving lamps(80,100,200)W
BCP-14 內裝高效節能無極燈 Built-in energy efficient lamp(40,50,85,125,160,200)W
BCP-15 300W 250W 125W,250W 150W,250W 175W,250W E27,E40
BCP-16 300W 250W 125W,250W 150W,250W 175W,250W E27,E40

平臺燈配用防爆燈 Platform lamp is with explosion-proof lamp

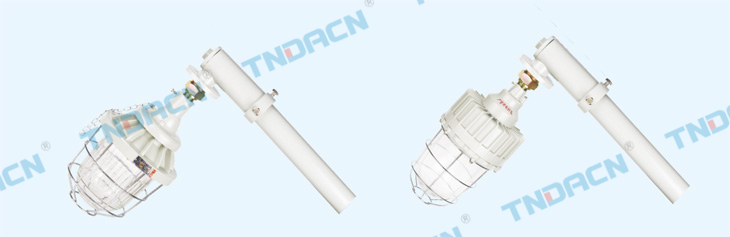

外形及安裝尺寸 Outline&installation dimension

安裝配件表 Installation accessories and spare parts

序號
No.		 名稱 Description
1
2
3
4
5
6		 燈具Lamp
活接頭 Union
路燈彎桿 Street light pole bending
路燈桿 Road Pole
基座內裝鎮流器 Ballast built base
防爆燈安裝件 Explosion-proof lamp mounting

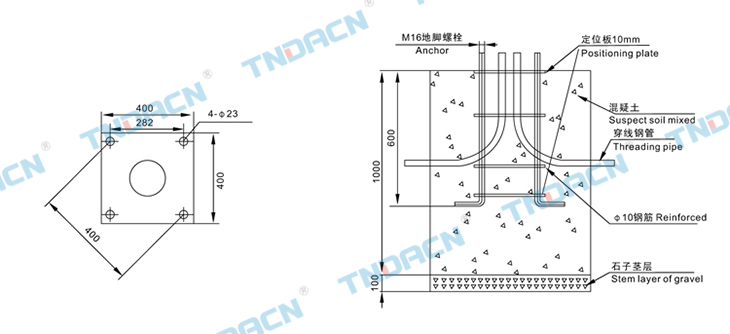

路燈基座混泥土示意圖 Schematic diagram of the base concrete street
