詳細信息

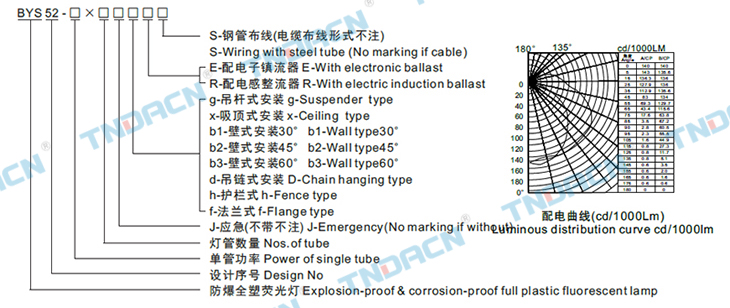

型號含義 Modelimplication
適用范圍 Applications
產品特點 Features
1.外殼采用增強聚碳酸脂材料壓制而成，具有強度高，抗強沖擊，耐高溫，耐寒等特點；
2.本熒光燈光源采用新一代的T5超細熒光燈，具有以下特點：
a)長度短，具有更精確的光照控制；
b)光效高，更加符合實際照明環境，燈管的光效高達104lm/W;
c)具有超長的開關次數和使用壽命，壽命高達20000小時；
d)具有很高的流明維持率，光衰慢，10000小時后流明維持率高達92%；
e)改善光束分配，顯色性高和節能環保，28W的T5燈管光通量高于36W的T8燈管光能量；
3.反光罩采用特殊的弧形折彎，且經過二次配光專業設計軟件進行設計，并通過實際測試檢驗，反光罩反射后的光束分配更合理。
4.內裝電子鎮流器為我公司特制的防爆鎮流器，具有短路和開路保護性能，針對燈管的老化效應和漏氣現象配有預防電路，使燈具能正常工作，且高效節能COSф≥0.98，具有寬電壓輸入，在電壓170～250VAC范圍內，均能保持恒功率輸出，不影響輸出光效；
5.熒光燈體和透明罩之間采用卡扣形式，結合更加緊密，采用特殊設計的密封條，雙重密封，防護性能更加卓越；
6.維修簡便，開合時只需將螺絲刀插入卡扣的小口處就可以方便的進行開合；
7.可以根據用戶要求加裝應急裝置。
1.The enclosure is moulded by reinforced polycarbonate. It has some advantages of high intensity,strong impact resistanced, high temperature resistant and cold resistance;
2.Thsi kind of lamp housing is the latest and superfine lamp of T5, whose futures are as following;
a)Short length can control the lighting more accurately.
b)Great lighting effect can more accord with the actural illumination environment. The lighting effect of lamp tubes can reach 104lm/W.
c)It has many times to be on -off and has a long working life. The working life can be lasted 20000 hours.
d)High luminous maintenance rate and slow optical decay. After 10000 hours,the luminous maintenance rate can reach92%.
e)To improve the distributions of light beam, it has great color rendering, energy conversation and environmental protection. The luminous flux of T5 Tubes with 28W is more than T8 tubes of 36W's.
3.Reflector is eambered specially. After it has been designed by special software design of distribution for two times, and passed the actual test. The distribution of light beam can be more reasonable;
4.Inner electronic ballast is our company's special explosion-proof ballast, and it has protection functions of short circuit and open circuit. For the phenomenons of tubes aging effect and air leakage, it should have standby circuit in order to keep it working. The high energy saving is COSф≥0.98,and it has the wide range of input voltage. It can keep constant power output and have no impact on the lighting effect output within 172V~250VAC;
5.Buckle structure is used between the enclosure and transparent cover to get together more tightly. The special sealing strip can be sealed doubly and its protection is more perfect;
6.Convenient maintenance. You can just put the screwdriver into the ventage of buckle to open and close;
7.Add an emergency device to meet customers'requirements.
主要技術參數 Main technical parameters
|
|
*帶應急時參數 Parameter for taking emergeney.

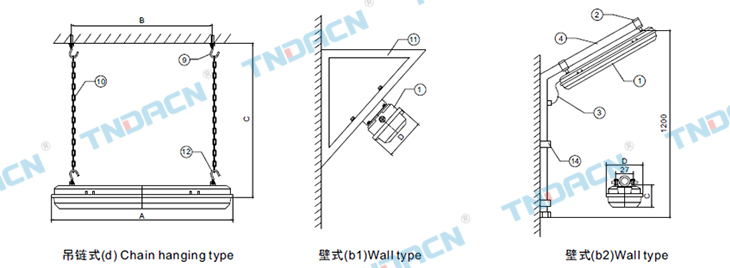

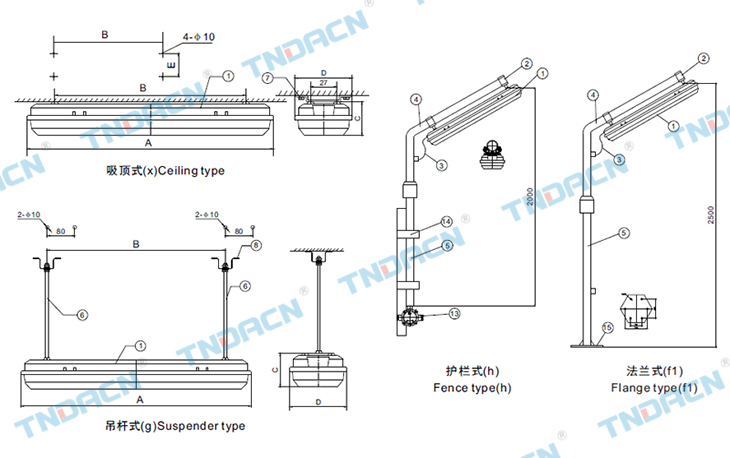

外形及安裝尺寸 Outline&installation dimension
安裝配件表 Installation accessories and spare parts
