產品總匯

當前位置： 首頁 > 產品總匯 > 防爆燈具類 > BPY51系列井架專用防爆熒光燈（ⅡC）

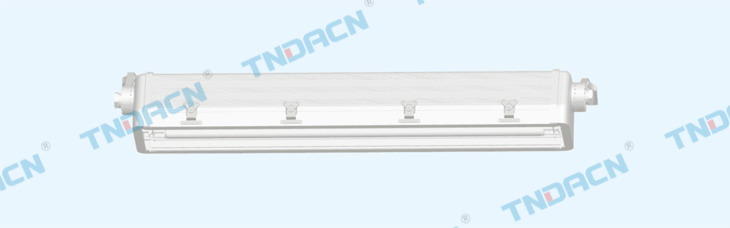

BPY51系列井架專用防爆熒光燈（ⅡC）

詳細信息

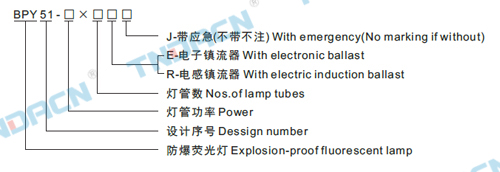

型號含義 Modelimplication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.石油、井架、采油平臺等野外較惡劣的環境。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.It is used in outside hard atmospheres, such as oil, headframe and drilling plat.

產品特點 Features

1.外殼采用高強度合金鋁拉伸成型，表面氧化處理，造型美觀大方，防腐能力強；
2.燈罩采用鋼化玻璃，透光率高，可承受高強撞擊；
3.采用密封結構，特制專用不銹鋼鎖扣，保證了較強的防水、防塵能力；
4.特制安裝支架和燈座結構，具有良好的防震能力，并可根據要求調整照射的角度；
5.內裝光源可為雙腳熒光燈或單腳瞬時啟動熒光燈；
6.專用于石油、井架、采油平臺等野外惡劣環境中；
7.可根據用戶要求加裝應急裝置。
1.The enclosure is moulded by the high strength aluminum alloy for one time. Its exterior has treated with oxidation. It has great anti-corrosive performance and the exterior and the exterior is clean and beautiful;
2.Lamp housing is made of high borosilicate toughened glass with high transmittance, and it can withstand strong impact;
3.It has sealing structure and a special stainless steel twistlock, which has ensured the great functions of water proof and dust proof;
4.Mounting the special bracket and lamp holder, which has great shock-proof function. The lighting range can be adjusted in request;
5.Inner lamps can be double pins fluorescent lamp or single pin lamp which can start instantly;
6.It is specially used in worse atmospheres outside, such as oil, headframe ans drilling plat;
7.Adding an emergency device to meet customers' demands.

主要技術參數 Main technical parameters

功率
Power		 電壓
Voltage		 充電時間
Charging time		 應急啟動時間
Time of emergency
lighting		 應急啟動時間
Time of emergency
lighting		 電纜外徑
Cable outer
dia.(mm)		 電纜入口
Cable inlet(G)
40W×2(J) ~220V DC6V*
 		 24h* 0.3s* 90min* φ10~φ14 3/4


防爆標志
Ex-mark		 防護等級
Degree of protection

防腐等級
Erosion-proof-class
ExdⅡCT6等效于 Ⅱ2G ExdⅡCT6(歐標)
ExedⅡCT6等效于 Ⅱ2G ExedⅡCT6(歐標)
DIP A20 TA,T6等效于 Ⅱ1D ExtD A20 T6(歐標)		 IP65

WF1

*帶應急時參數。Parameter for taking emergency.

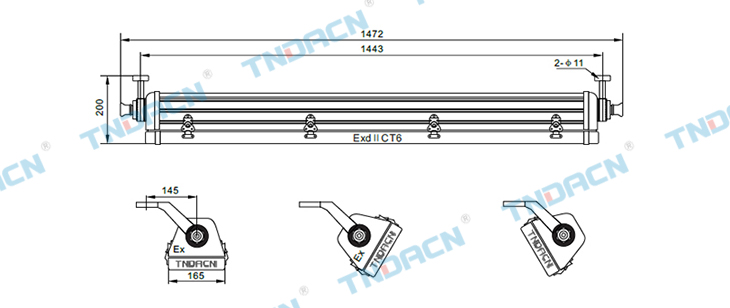

外形及安裝尺寸 Outline&installation dimension
