當前位置： 首頁 > 產品總匯 > 防爆燈具類 > ccd92系列隔爆型防爆燈（ⅡC）

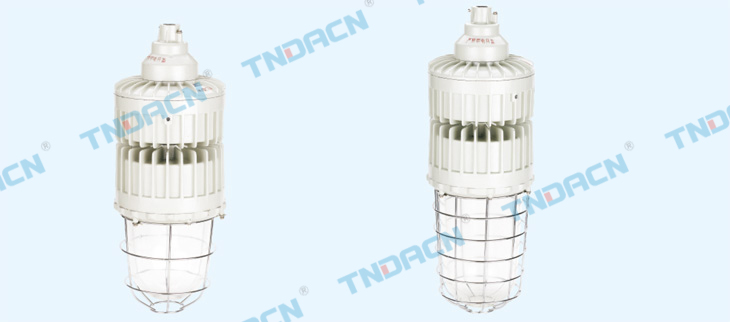

ccd92系列隔爆型防爆燈（ⅡC）

詳細信息

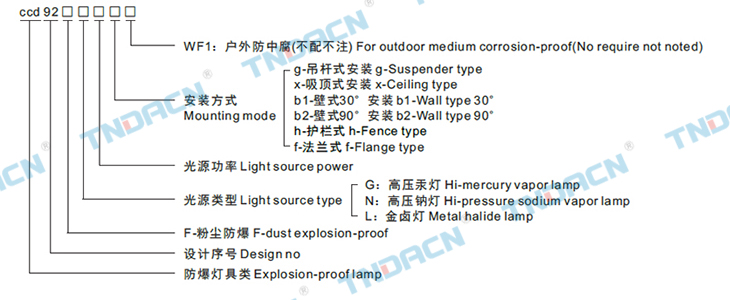

型號含義 Modelimplication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.可配裝白熾燈、汞燈、高壓鈉燈、金鹵燈；
6.應用于石油、化工、航天、軍工等場所。

1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC or
inflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Equipped with incandescent lamp, mercury vapor lamp,
high-pressure sodium vapor lamp, metal halide lamp.
6.Widely using in the fields of oil ,Chemical industry, spaceflight,
war ind-ustry and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、 防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.燈罩采用高硼硅鋼化玻璃，透光率高，可承受高強沖擊；
3.采用密封結構，保證了較強的防水、防塵能力；
4.燈體和出線套采用無線連接，便于用戶安裝和維修；
5.鎮流器采用特制的環形鎮流器，耐熱等級高，鎮流器裝于燈體中，燈具能夠長壽命無故障動行。由于 取消專配的鎮流器箱，使燈具更加經濟；
6.鋼管布線
1.Shell made of high strength aluminum alloy casting off the surface after blast cleaning by high voltage electrostatic spray. Shell compact structure, high density material strength, Explosion-proof performance, the surface of plastic powder adhesion ability with good anti-corrosion, the surface smooth, elegant appearance;
2.Lamp housing is made of high borosilieate toughened glass with high transmittance, and it can withstand strong impct.
3.It has sealing structure, which has ensured the great functions of water proof and dust proof.
4.The lampbody and outlet sleeve use wireless wire connecting, it's convenient for the users to install and maintaince.
5.The ballast uses special annular ballast, high heat-resistance, the inner ballest is installed in the lampbody, the lamp has long life and calling off the special ballast box, which makes the lamp more economically.
6.Conduit wiring.

主要技術參數 Main technical parameters

防爆標志
Ex-mark		 防護等級
Protection grade		 電纜外徑(φ,mm)
Cable's outer
diameter		 進線口螺紋(G")
Inlet's thread		 燈座代號
Lamp socket
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)		 IP65
 		 10~14 3/4 E40


配用光源 Supplied with light source

光源類型
Lamp type		 額定電壓(V)
Rated voltage		 額定功率(W)
Rated power
高壓汞燈 Hi-mercury vapor lamp
高壓鈉燈 Hi-pressure sodium vapor lamp
金鹵燈 Metal halide lamp
220
220
220
175,250
150,250
175,250

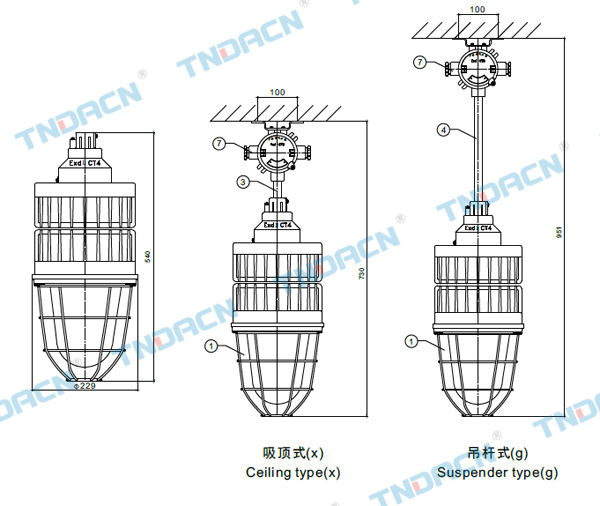

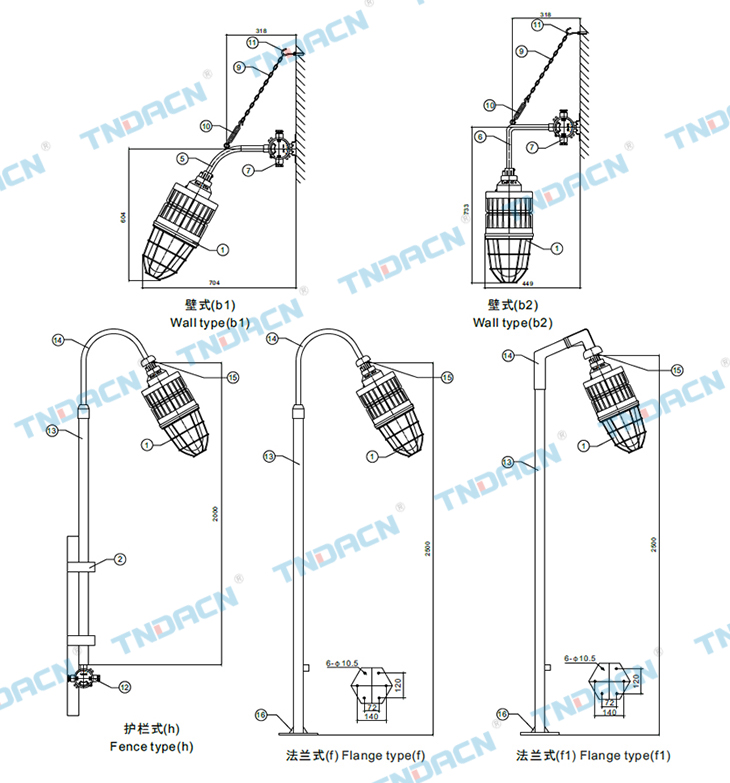

外形及安裝尺寸 Outline&installation dimension


安裝配件表 Installation accessories and spare parts

序號
No.		 名稱 Description 序號
No.		 名稱 Description
1
2
3
4
5
6
7
8
燈具 Lamp
U型管夾 U-tube clip
管接頭 Fittings
吊桿 Boome
30°彎桿 30°bend-rod type
90°彎桿 90°bend-rod type
吊燈盒Lighting box
防爆整流器 Explosion-proof ballast
9
10
11
12
13
14
15
16
鏈條Chain
cc型索具螺旋扣cc-type rigging screw
吊鉤Hook
防爆三通接線盒Explosion-proof terminal box links
平臺燈桿Platform Pole
平臺彎桿 Platform bend-rod type
活接頭 Union
底板 Bottom board
