產品總匯

當前位置： 首頁 > 產品總匯 > 防爆燈具類 > BFC8183系列防爆固態免維護燈（ⅡC）

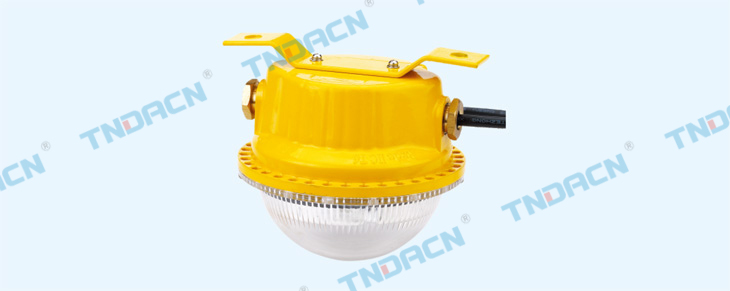

BFC8183系列防爆固態免維護燈（ⅡC）

詳細信息

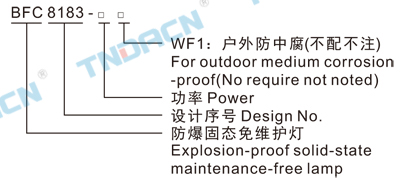

型號含義 Model implication

適用范圍 Applications

1.1區、2區危險場所或20區、21區、22區危險場所；
2.ⅡA、ⅡB、ⅡC爆炸性氣體環境或可燃性粉塵環境；
3.戶內、戶外(IP54、IP65*)；
4.溫度組別：T1~T4/T5/T6；
5.應用于石油、化工、航天、軍工等場所。
1.Hazardous:division 1 &2,or 20,21,&22;
2.Explosive gas atmosphers: classⅡA ⅡB ⅡC orinflammable dust environment;
3.Indoor or outdoor(IP54,IP65*);
4.Temperature class:T1~T4/T5/T6;
5.Widely using in the fields of oil ,Chemical industry, spaceflight,war ind-ustry and so on.

產品特點 Features

1.殼體采用高強度合金鋁一次性壓鑄成型，表面經高速拋丸清理后高壓靜電噴塑。外殼結構緊湊合理、材質密度高強度好、防爆性能優良，表面塑粉附著力強具有良好的防腐能力，表面光潔，美觀大方；
2.燈罩材質采用鋼化玻璃，透光性好，抗高能量沖擊，且為防眩光設計，經過光學二次設計并得到了實際測試的驗證；
3.本系列產品增加了遙控控制系統，為客戶帶來更加便捷的操作。
4.反光罩材質為優質鋁板，其反光設計經過了專業光學軟件的二次配光設計，且通過了實際測試的驗證，提高了燈具的使用率；
5.采用密封結構，保證了較強的防水、防塵能力；
6.鋼管布線。
1.Shell made of high strength aluminum alloy casting off thesurface after blast cleaning by high voltage electrostatic spray.Shell compact structure, high density material strength,Explosion-proof performance, the surface of plastic powderadhesion ability with good anti-corrosion, the surface smooth,elegant appearance;
2.Lamp housing is made of high borosilicate glass with greattransmittance and high energy shock resistance. It's theantiglare design. After designed by special software designof distribution for two times, it can get the confirmation;
3.This series adds remote control system, provide customersa more convenient operation.
4.Reflector is made of high-quality aluminium plate. After ithas been designed by special software design of distributionfor two times, and passed the actual test, the availabilityfactor of lamps can be raised;
5.It has sealing structure, which has ensured the great functionsof water proof and dust proof.
6.Wiring with steel tube.

主要技術參數 Main technical parameters

防爆標志
Ex-mark		 防護等級
Protection class
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)		 IP65



電纜外徑(φ,mm)
Cable's outer
diameter		 進線口螺紋(G")
Inlet's thread		 光源
Light source
ExdⅡCT4等效于 Ⅱ2G ExdⅡCT4(歐標)
DIP A20 TA,T4等效于 Ⅱ1D ExtD A20 T4(歐標)		 3/4 LED

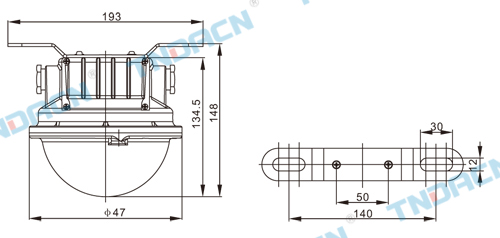

外形及安裝尺寸 Outline&installation dimension
